Thermoplastic Pipes & Fittings

HDPE, PVC, CPVC, PE, PPR, PVDF, EF, TF

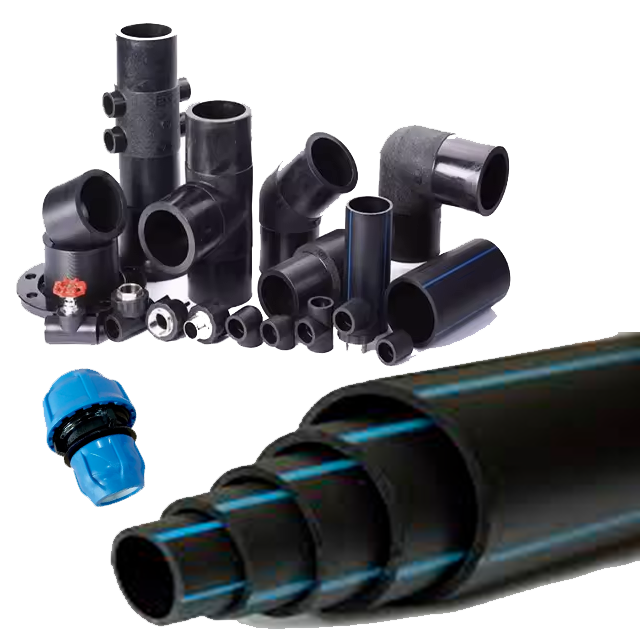

HDPE

HDPE pipe is a type of flexible plastic pipe used for fluid and gas transfer and is often used to replace ageing concrete or steel mains pipelines. Made from the thermoplastic HDPE (high-density polyethylene), its high level of impermeability and strong molecular bond make it suitable for high pressure pipelines.
PE piping has been used for water and other fluids in Europe and America since the 1950s due to its durability, leak free joints, resistance to corrosion, and long-term cost-effectiveness.

Nominal diameters: 16 to 2000 mm (or 1⁄2” to 78”) / SDR 41 (S20) to SDR 7,4 (S3,2)

Temperature: up to 140°F (PE100)

Pressure: up to 25 bar (PN25)

Applicable standards: ISO4427, ASTM F714, ASTM D3261, AWWA C901, AWWA C906, ASTM D3035, ASTM D3261, ASTM D3350, ISO 14236, ISO 12176.

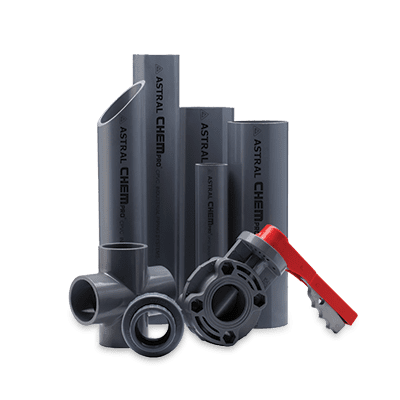

PVC /CPVC

The value of PVC and CPVC is in their versatility, relative cost, ease of installation and corrosion
resistance. Keeping those advantages in mind, common uses for each differ depending on the demands of the application.
The main difference between CPVC and PVC is the range of temperatures each is capable of
withstanding. CPVC can handle temperatures up to 200° Fahrenheit, while PVC peaks at 140° Fahrenheit.

Nominal diameters: 1⁄4″ to 24″ / Schedule 40 &80
Temperature: up to 140 °F (PVC) – up to 200 °F (CPVC)
Pressure: up to 2.000 psi (CPVC SCH80)
Applicable standards: ASTM F439 / F441 / F441M – ASTM D2846 / D2846M – ASTM E84/UL723 – ASTM D1784

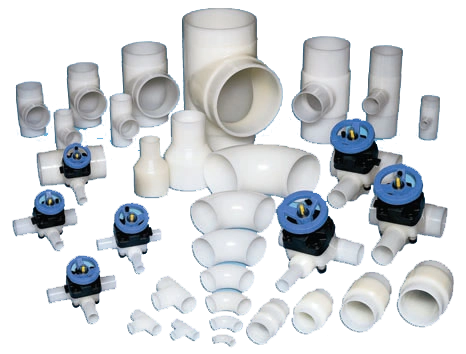

PVDF

Polyvinylidene fluoride or polyvinylidene difluoride (PVDF) is a highly non-reactive thermoplastic fluoropolymer produced by the polymerization of vinylidene difluoride.
PVDF is a specialty plastic used in applications requiring the highest purity, as well as resistance to solvents, acids and hydrocarbons. Compared to other fluoropolymers, like polytetrafluoroethylene (Teflon), PVDF has a low density (1.78 g/cm3).

Nominal diameters: d20 – d315 mm (1⁄2″ – 12″)

Temperature: -40 °C to 150 °C

Pressure: d20 – d110 mm: PN16 (232 PSI) / d160 – d315 mm: PN10 (150 PSI)

Applicable standards: ASTM D4101 / ISO 10931.

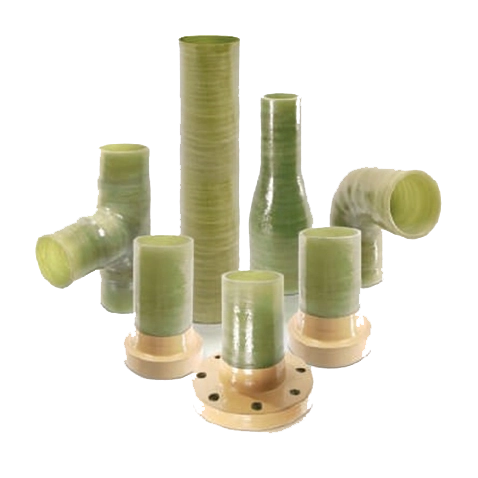

PRFV / FRP / GRP

Applications: the Fiberglass Reinforced Plastic Pipes and Reinforced Plastic Mortar Pipe are mainly used in such fields as water conservancy, sewage, petroleum, chemical industry, electricity, metallurgy, pharmacy, etc.
FRPs have a low weight but are incredibly strong, and have good fatigue, impact and compression properties. This makes them of great interest to the motor industry who aim to replace metal with lighter weight materials to not only make the cars stronger but more fuel efficient.

Nominal diameters: DN25 – 4000mm / Pipe engths: 1m, 3m, 6m, 12m

Temperature: -20 to 200 °F

Pressure: 0.1Mpa, 0.6Mpa, 1.0Mpa, 1.6Mpa, 2.5Mpa

Applicable standards: ASTM D2996, AWWA C950, AWWA M45, ASME B31.1, ASME B31.3, BS6464
